Full Acrylic Face Lit – Premium Channel Letters

  • Acrylic faces with fabricated and welded stainless steel returns
  • Prepped, smooth sanded and painted returns
  • Multiple return colors available
Category:
  • Acrylic faces with fabricated and welded stainless steel returns
  • Prepped, smooth sanded and painted returns
  • Multiple return colors available

7-10 Day Turnaround and Cut-off Time:

Order and submit artwork before 4pm PST ships in 7-10 business day. Order after 4pm add 1 business day.

Same Day Turnaround:

Not available for this product.


Available Production Facility

Your orders are dispatched from the closest facility to your ship-to address for speed and savings

CA Headquarters
CA Sign Department
TX Print Facility
PA Print Facility



Store pickup only available in our California locations


Description

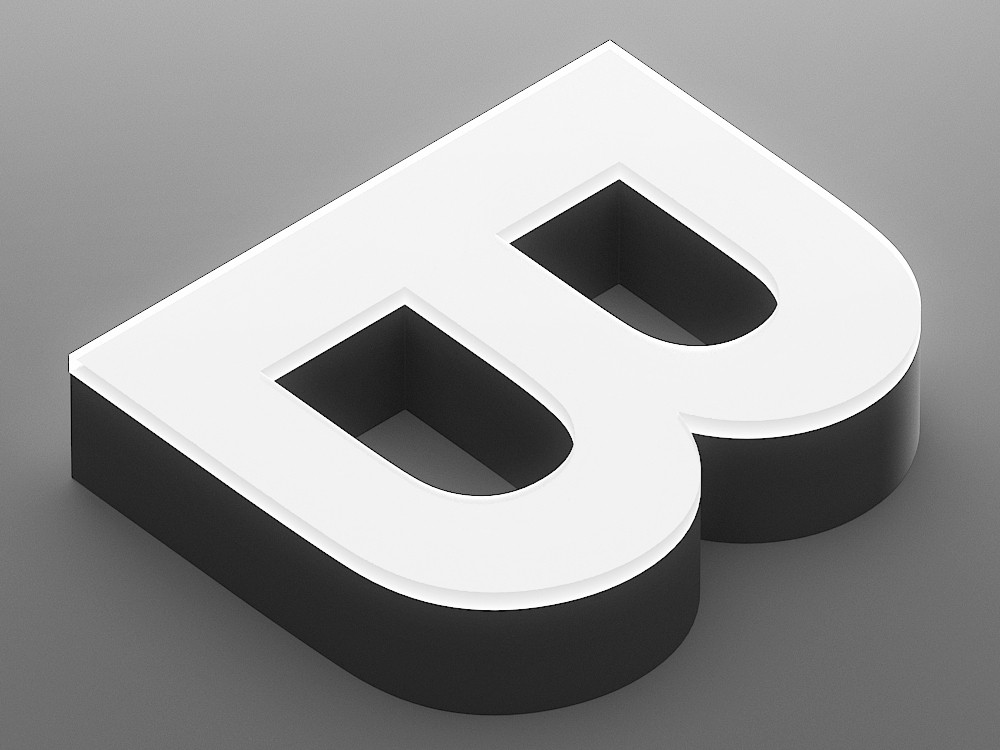

FrontFront

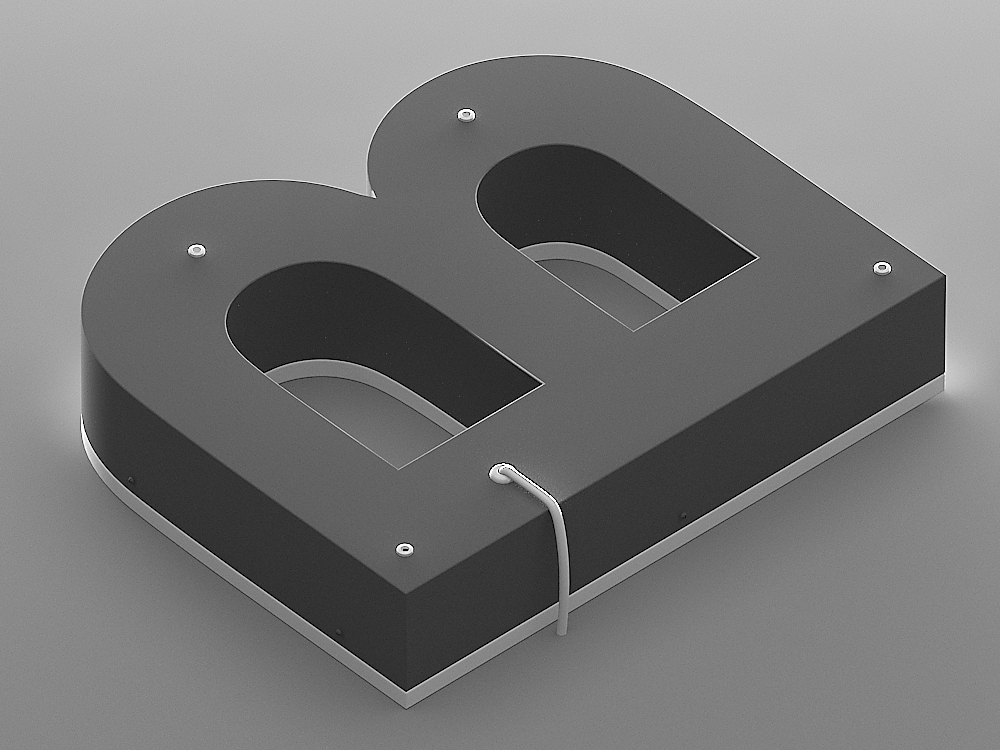

BackBack



This Front Lit Stainless Steel letter comes standard with a white acrylic face and Stainless Steel return.
Color can be customized on any Stainless Steel surface. This is a sturdy front lit option if you are looking for
something simple and sleek.

  • Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
  • Certified: UL Listed with Sign Section Labels for Outdoor Installation
  • 5 Year Warranty

Components

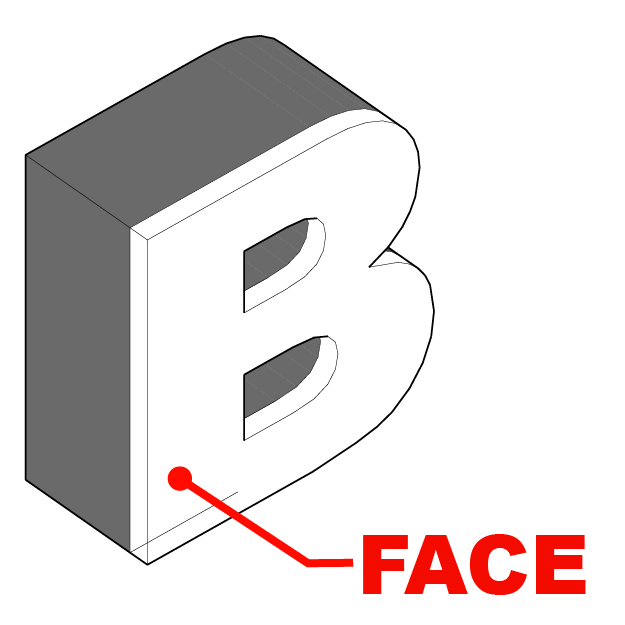

Face

Faces are the front surface of Front Lit stainless steel letters

Specification
15mm Polycarbonate White Acrylic

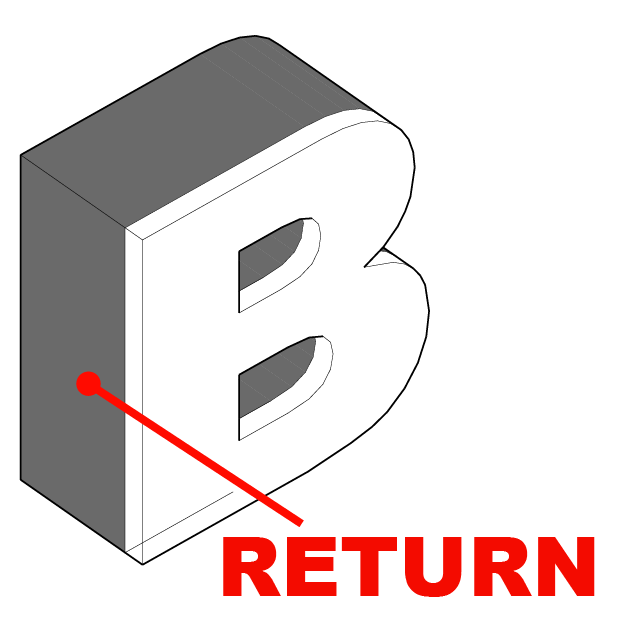

Return

Returns are the sides of the Front Lit letter.

Specification
2″ or 3″ 0.8mm/1mm Stainless Steel Returns

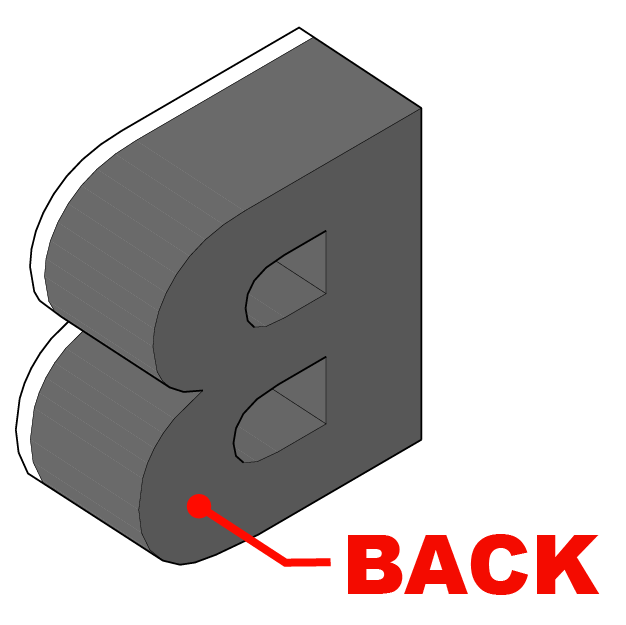

Back

Backs are the back board of the Front Lit stainless steel letter.

Specification
0.8mm/1mm Stainless Steel



LED Lights


Specification

Mynice High Efficiency, 160° Beam, IP67, 10000K – 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)



Power Transformer


Specification

Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year
Warranty)

*For dry location only.

Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)


Installation Guide

Transformer Installation Guide



Raceway


Specification

Size:

5.5″ height and 3.5″ depth

Customizable length from 10″ to 46″

For wider applications, multiple segments are used to achieve the desired length

Accessories:

  • Raceway base (each segment)
  • Raceway cover (each segment)
  • End caps x2 (each raceway)
  • Connect plates x2 (each segment)
  • Mounting brackets x4 (each segment)
  • Self-tapping screws x20 (each segment)

Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on
the raceway and you will have to drill the holes on the raceway yourself.



Raceway Installation Guide:

  • List out parts

  • Assemble Raceway

  • Put Hanger on

Warranty

5 Years Warranty
B2Sign warrants that Stainless Steel Letters will be free from defects in materials and workmanship for a period of
five (5) years from the date of shipment. Should there be a malfunction covered under this warranty, the buyer must
notify B2
Sign prior to taking any action. To proceed with any work or repairs on signs under warranty without
notifying B2 Sign
automatically voids any warranty.

If the product proves defective during the warranty period, B2 Sign, at its option, will:
(1) Repair the product, at no charge for parts or via telephone/email support.
(2) Replace the product with an equivalent product which may be new or refurbished.

B2Sign tests and inspects all signs for proper operation prior to shipment. In addition, all signs are
shipped in
packaging that meets or exceeds industry standards for common carrier shipment. Therefore, it is the
responsibility of
the party receiving the shipment to inspect the packaging for any damage prior to accepting shipment. If
packaging is
damaged – inspect all contents for damages before signing. Photos should also be taken as a record of
evidence. In the
event that shipping damage is determined, it is the responsibility of the customer receiving the shipment to
file a
claim with the carrier and notify by email ChannelLetters@b2sign.com or call 1 (888) 739-8501. Any damages
incurred
between shipment from our plant and final destination will not be the responsibility of B2 Sign, but will
fall on the
carrier.

This warranty does not apply to damages resulting from acts of God, accidental negligence, vandalism or
misuse. These
warranties shall not apply to any defect, failure or damage caused by improper use, installation or care. B2
Sign shall
not be obligated under this warranty.

The above warranties are given by B2 Sign with respect to this product and its related items in lieu of any
other
warranties, express or implied. It is the responsibility of B2 Sign to repair defective products and related
items as
the sole remedy provided to the customer for the honor of this warranty.

FAQ

What are the maximum and minimum production limits for each letter?
A: Size Limits: Minimum stroke thickness no less than 1/2″ for 2″ returns.
Minimum stroke thickness no less than 1″ for 3″ returns.
The largest standard size quoted is 36″ x 36″. Artwork exceeding this limit will be proportionately scaled
down in your
quoting page.
Largest product size can go up to 48” x 48” but must be custom ordered and will incur additional fee.
Please submit email requests for estimates beyond automated options.
This option is subject to additional processing time and production fees.
What kind of art files should I submit?
A: Our system accepts PDF, EPS, or AI formats.
All files submitted must be Vector and scaled to your specifications.
Each letter should be outlined and simplified before uploading.
If you have any trouble uploading a file, you may click the “Help” button at the bottom right and our team
will contact
you with a quote ASAP.
How long is the production time for stainless steel channel letters?
A: The standard turnaround for the stainless steel channel letters is 3 weeks plus shipping.
If you order a customized Pantone-C color that is outside of the colors listed, it will take an additional 3
or more
days for completion.
How long is the wiring/cord?
A: Our stainless steel letter comes standard with a 3 feet cord.
Additional cord can be ordered for extra pricing.
Are installation accessories provided?
A: Optional installation accessories are available for purchase.
We offer simplified installation accessories that do no require the disassembly of letters.
These include mounting screws.
Do you also have optional parts for installation?
A: Yes. Optional 3-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.
