Reverse Acrylic Lit

Category:

Ready-to-install
UL Certified
5 Year Warranty

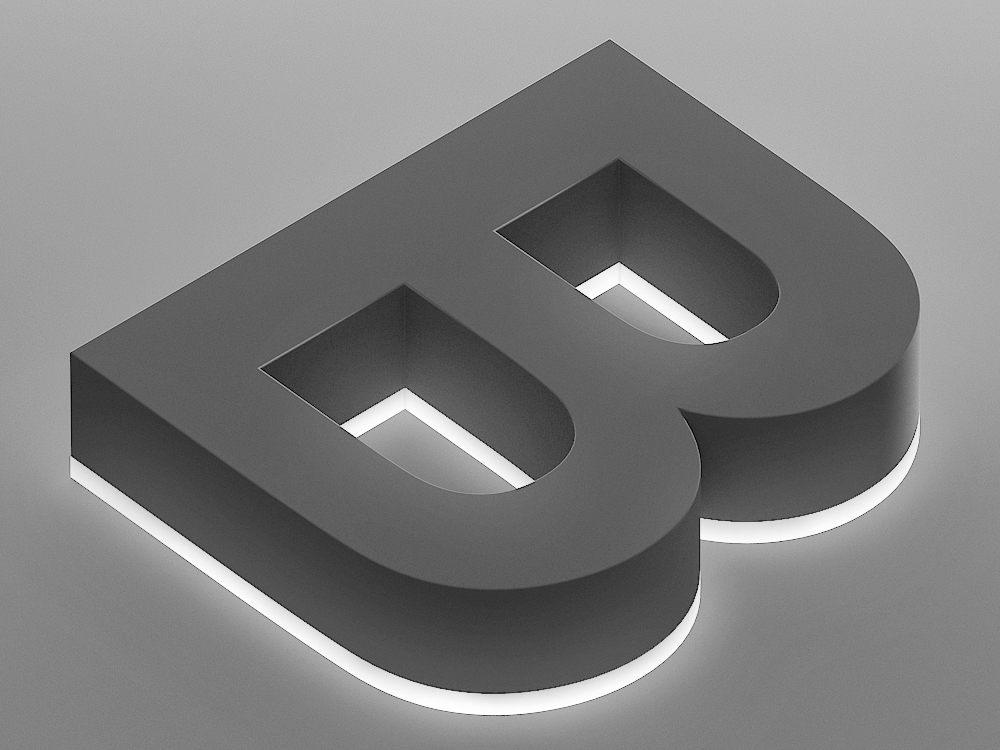

Reverse Acrylic Lit

7-10 Day Turnaround and Cut-off Time:

Order and submit artwork before 4pm PST ships in 7-10 business day. Order after 4pm add 1 business day.

Same Day Turnaround:

Not available for this product.

Available Production Facility

Your orders are dispatched from the closest facility to your ship-to address for speed and savings

CA HeadquartersCA Sign DepartmentTX Print FacilityPA Print Facility



Store pickup only available in our California locations

Description

Front

Front

Back

Back

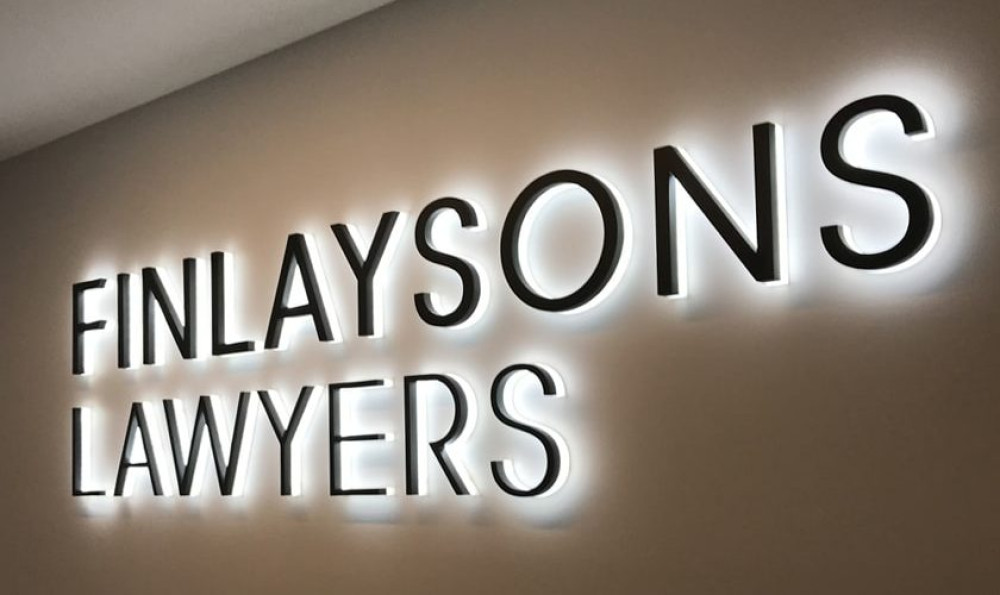

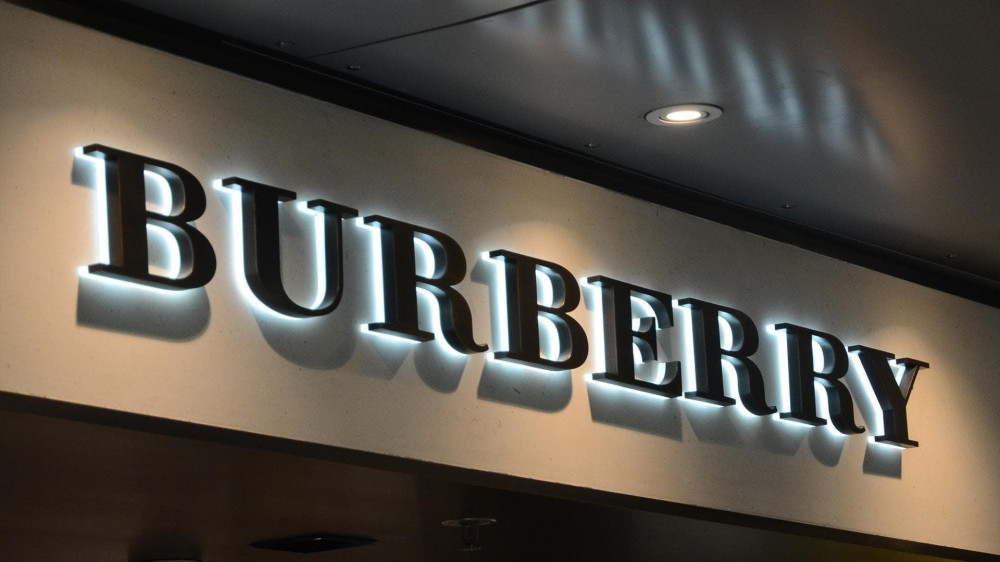

This clean, polished design is perfect for indoor or outdoor display. It can be flush mounted on the facade of a building or as a stand alone sign. Other than being an exterior installation, this also works great as an indoor decoration to demonstrate your brand culture.

  • Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
  • Certified: UL Listed with Sign Section Labels for Outdoor Installation
  • 5 Year Warranty

Components

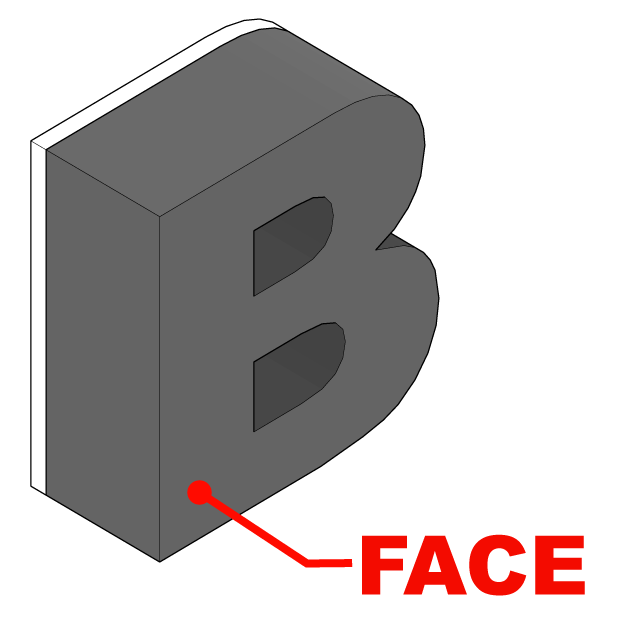

Face

Faces are the front stainless steel surface of Reverse Lit letters
Specification
0.8mm/1mm stainless steel
a
a

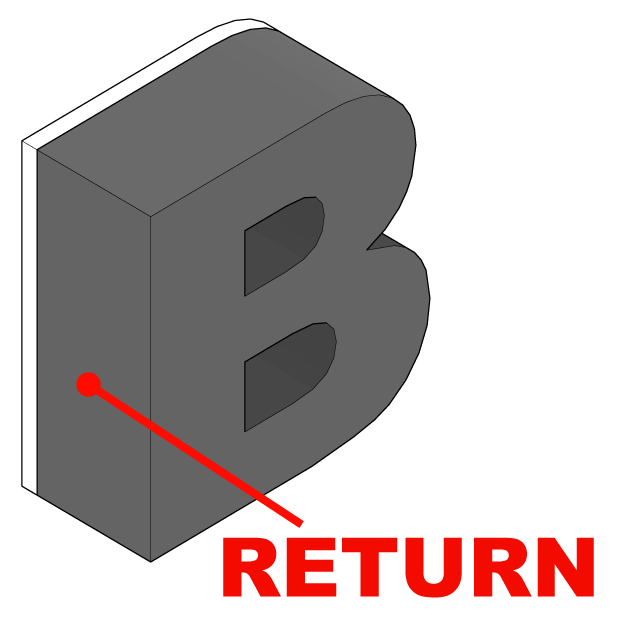

Return

Returns are the sides bordering the Reverse Lit letter.
Specification
2″ or 3″ 0.8mm/1mm stainless steel Returns
a

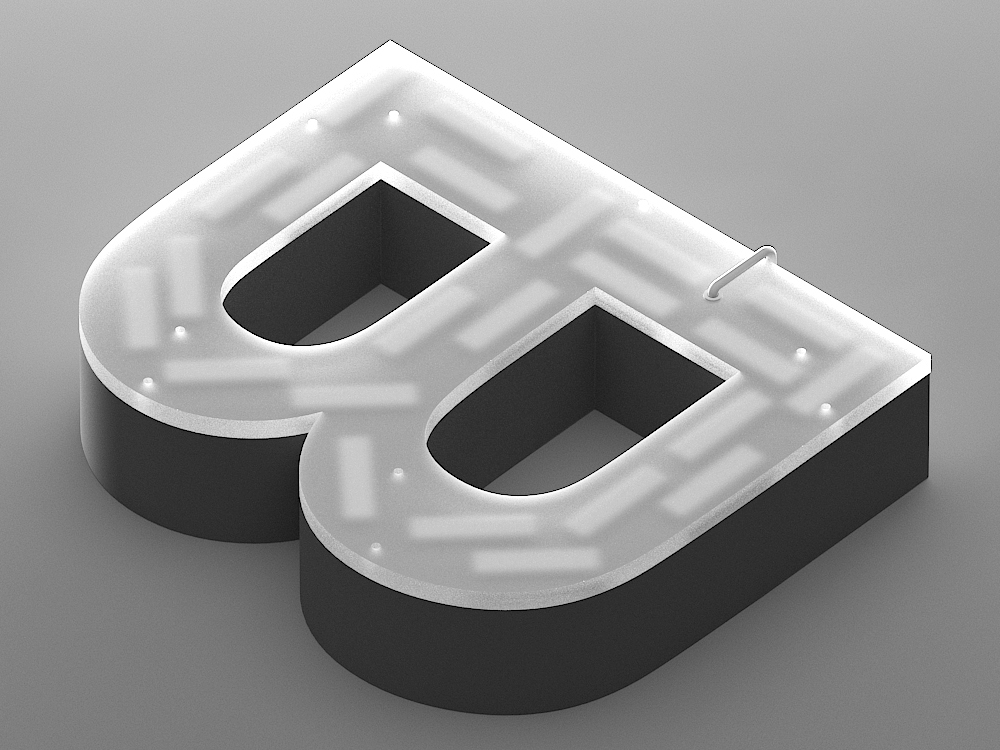

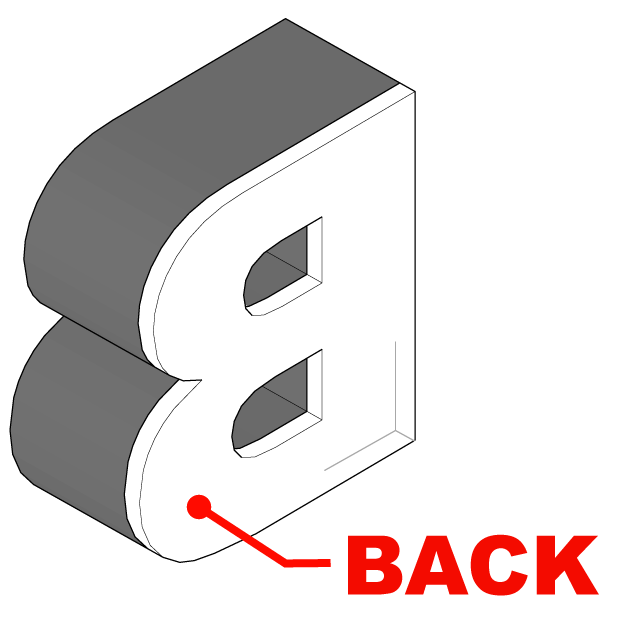

Back

Backs are the back board of the Reverse Lit letter.
Specification
0.4” Polycarbonate Translucent Acrylic
a



LED Lights

Specification

Mynice High Efficiency, 160° Beam, IP67, 10000K – 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)



Power Transformer

Specification

Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)

Installation Guide
Transformer Installation Guide



Raceway

Specification

Size:
5.5″ height and 3.5″ depth
Customizable length from 10″ to 46″
For wider applications, multiple segments are used to achieve the desired length

Accessories:

  • Raceway base (each segment)
  • Raceway cover (each segment)
  • End caps x2 (each raceway)
  • Connect plates x2 (each segment)
  • Mounting brackets x4 (each segment)
  • Self-tapping screws x20 (each segment)

Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.



Raceway Installation Guide:

a

  • List out parts

a

  • Assemble Raceway

a

  • Put Hanger on

5 Years Warranty

B2Sign warrants that Stainless Steel Letters will be free from defects in materials and workmanship for a period of five (5) years from the date of shipment. Should there be a malfunction covered under this warranty, the buyer must notify B2 Sign prior to taking any action. To proceed with any work or repairs on signs under warranty without notifying B2 Sign automatically voids any warranty.

If the product proves defective during the warranty period, B2 Sign, at its option, will: (1) Repair the product, at no charge for parts or via telephone/email support. (2) Replace the product with an equivalent product which may be new or refurbished.

B2Sign tests and inspects all signs for proper operation prior to shipment. In addition, all signs are shipped in packaging that meets or exceeds industry standards for common carrier shipment. Therefore, it is the responsibility of the party receiving the shipment to inspect the packaging for any damage prior to accepting shipment. If packaging is damaged – inspect all contents for damages before signing. Photos should also be taken as a record of evidence. In the event that shipping damage is determined, it is the responsibility of the customer receiving the shipment to file a claim with the carrier and notify by email ChannelLetters@b2sign.com or call 1 (888) 739-8501. Any damages incurred between shipment from our plant and final destination will not be the responsibility of B2 Sign, but will fall on the carrier.

This warranty does not apply to damages resulting from acts of God, accidental negligence, vandalism or misuse. These warranties shall not apply to any defect, failure or damage caused by improper use, installation or care. B2 Sign shall not be obligated under this warranty.

The above warranties are given by B2 Sign with respect to this product and its related items in lieu of any other warranties, express or implied. It is the responsibility of B2 Sign to repair defective products and related items as the sole remedy provided to the customer for the honor of this warranty.



FAQ

What are the maximum and minimum production limits for each letter?
A: Size Limits: Minimum stroke thickness no less than 1/2″ for 2″ returns.
Minimum stroke thickness no less than 1″ for 3″ returns.
The largest standard size quoted is 36″ x 36″. Artwork exceeding this limit will be proportionately scaled down in your
quoting page.
Largest product size can go up to 48” x 48” but must be custom ordered and will incur additional fee.
Please submit email requests for estimates beyond automated options.
This option is subject to additional processing time and production fees.
What kind of art files should I submit?
A: Our system accepts PDF, EPS, or AI formats.
All files submitted must be Vector and scaled to your specifications.
Each letter should be outlined and simplified before uploading.
If you have any trouble uploading a file, you may click the “Help” button at the bottom right and our team will contact
you with a quote ASAP.
How long is the production time for stainless steel channel letters?
A: The standard turnaround for the stainless steel channel letters is 3 weeks plus shipping.
If you order a customized Pantone-C color that is outside of the colors listed, it will take an additional 3 or more
days for completion.
How long is the wiring/cord?
A: Our stainless steel letter comes standard with a 3 feet cord.
Additional cord can be ordered for extra pricing.
Are installation accessories provided?
A: Optional installation accessories are available for purchase.
We offer simplified installation accessories that do no require the disassembly of letters.
These include mounting screws.
Do you also have optional parts for installation?
A: Yes. Optional 3-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.
